Ball and Beam problem using PID Control

In this digital control version of the ball and beam experiment, we are going to use the PID control method to design the digital controller. If you refer to the Ball and Beam Modeling page, the open-loop transfer function was derived as
사용자 삽입 이미지
.....m........mass of the ball...............0.11 kg
.....g........gravitational acceleration.....9.8 m/s^2
.....d........lever arm offset...............0.03 m
.....L........length of the beam.............1.0 m
.....R........radius of the ball.............0.015 m
.....J........ball's moment of inertia.......9.99e-6 kgm^2
.....R(s).....ball position coordinate (m)
.....theta(s).servo gear angle...............0.25 rad

The design criteria for this problem are:
  • Settling time less than 3 seconds
  • Overshoot less than 5%
Digital PID controller
If you refer to any of the PID control problem for continuous systems, the PID transfer function was expressed as
사용자 삽입 이미지
As you noticed the above transfer function was written in terms of s. For the digital PID control, we use the following transfer function in terms of z.
사용자 삽입 이미지
Discrete transfer function
The first thing to do here is to convert the above continuous system transfer function to discrete transfer function. To do this, we are going to use the Matlab function called c2dm. To use this c2dm, we need to specify four arguments: numerator and denominator matrices, sampling time (Ts), and the 'method'. You should already be familiar with how to enter numerator and denominator matrices. The sampling time should be smaller than 1/(30*BW) sec, where BW is the closed-loop bandwidth frequency. The method we will use is the zero-order hold ('zoh'). Assuming that the closed-loop bandwidth frequency is around 1 rad/sec, let the sampling time be 1/50 sec/sample. Now we are ready to use c2dm. Enter the following commands to an m-file.

.....m = 0.111;
.....R = 0.015;
.....g = -9.8;
.....L = 1.0;
.....d = 0.03;
.....J = 9.99e-6;

.....K = (m*g*d)/(L*(J/R^2+m));   %simplifies input

.....num = [-K];
.....den = [1 0 0];

.....Ts = 1/50;

.....[numDz,denDz]= c2dm (num,den,Ts,'zoh')

Running this m-file in the Matlab command window gives you the following matrices.

.....numDz =
..........1.0e-0.4 *
..........0    0.4200    0.4200

.....denDz =
..........1    -2    1

From these matrices, the discrete transfer function can be written as
사용자 삽입 이미지
Open-loop response
Now we will observe the ball's response to a step input of 0.25 m. To do this, enter the following commands to an new m-file and run it in the command window. You should see the following response.

.....numDz = 0.0001*[0.42 0.42];
.....denDz = [1 -2 1];

.....[x] = dstep(0.25*numDz,denDz,251);
.....t=0:0.02:5;
.....stairs(t,x)

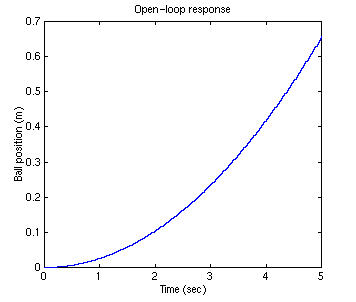

사용자 삽입 이미지
From this plot, it is clear that the open-loop system is unstable causing the ball to roll off from the end of the beam.

Proportianal Control
Now we will add the proportional control (Kp) to the system and obtain the closed-loop system response. For now let Kp equal to 100 and see what happens to the response. Enter the following commands to an new m-file and run it in the command window.

.....numDz = 0.0001*[0.42 0.42];
.....denDz = [1 -2 1];

.....Kp=100;
.....[numDzC,denDzC]=cloop (Kp*numDz,denDz);

.....[x] = dstep(0.25*numDzC,denDzC,251);
.....t=0:0.02:5;
.....stairs(t,x)

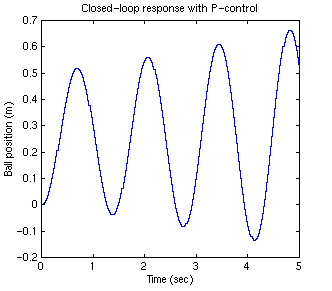

사용자 삽입 이미지
As you can see, the addition of proportional control does not make the system stable. You may try to increase the proportional gain (Kp) and confirm that the system remains unstable.

Proportional-Derivative control
Now we will add a derivative term to the controller. Keep the proportional gain (Kp) equal to 100, and let the derivative gain (Kd) equal to 10. Copy the following code to an new m-file and run it to view the system response.

.....numDz = 0.0001*[0.42 0.42];
.....denDz = [1 -2 1];
.....Kp=100;
.....Kd=10;
.....numpd = [Kp+Kd -(Kp+2*Kd) Kd];
.....denpd = [1 1 0];
.....numDnew = conv(numDz,numpd);
.....denDnew = conv(denDz,denpd);
.....[numDnewC,denDnewC] = cloop(numDnew,denDnew);
.....[x] = dstep(0.25*numDnewC,denDnewC,251);
.....t=0:0.02:5;
.....stairs(t,x)
사용자 삽입 이미지
Now the system is stable, but the rise time is too long. From the PID Tutorial page, we see that the increasing the proportional gain (Kp) will decrease the rise time. Let's increase the proportional gain (Kp) to 1000 and see what happens. Change Kp in the above m-file from 100 to 1000 and rerun it in the command window. You should see the following step response.
사용자 삽입 이미지
As you can see, all of the design requirements are satisfied. For this particular problem, no implementation of an integral control was needed. But remember there is more than one solution for a control problem. For practice, you may try different P, I and D combinations to obtain a satisfactory response.
